Product Description

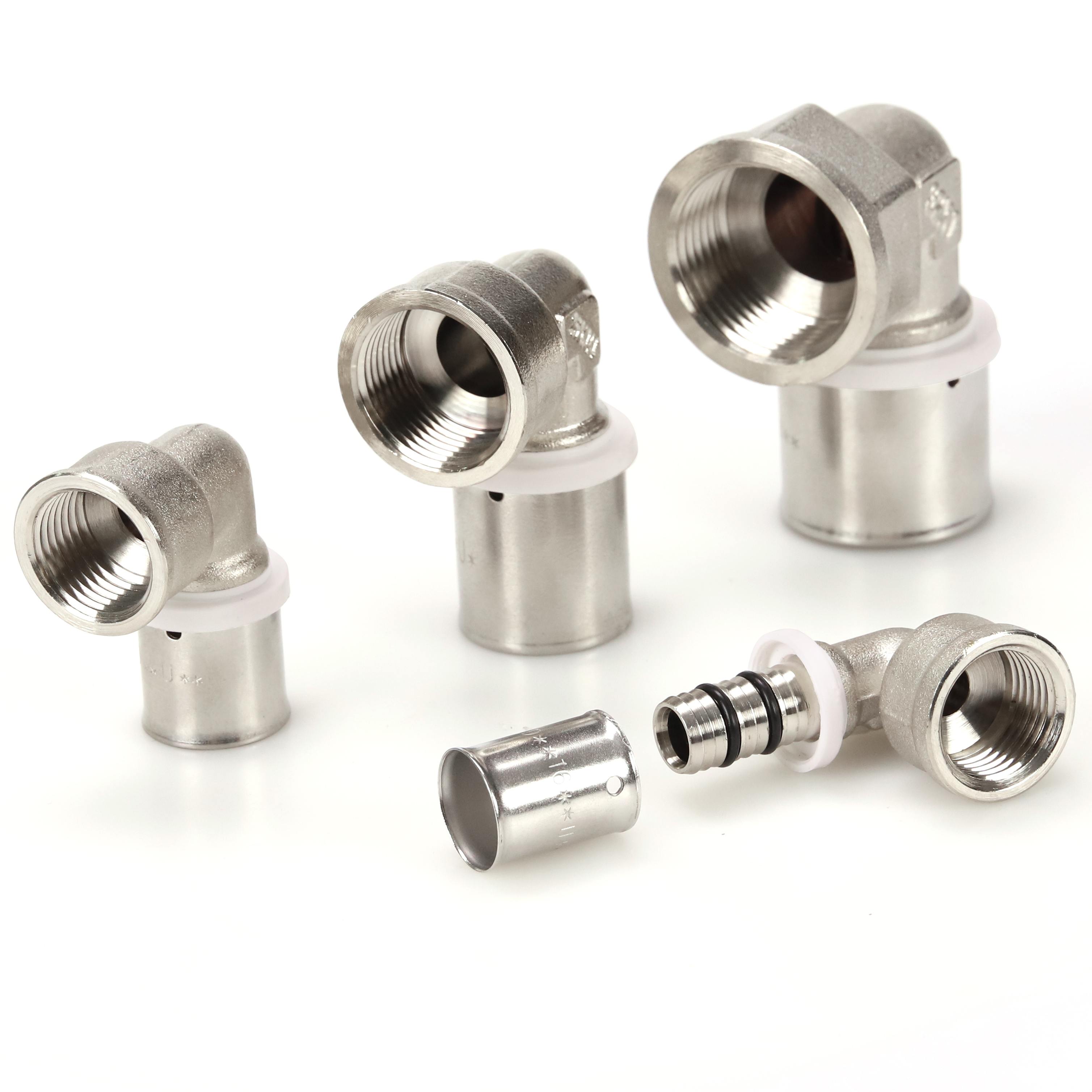

Brass Press fitting for Pex pipes-Elbow:
Brass: CW617N, CW602N & 58 brass,Also customer's request brass.
Standerd : ISO 21003, AS/NZS 2537, ISO 15875
Sleeves :304# stainless steel , Marked with diameter or logo.
3 holes for checking install.
O-rings are made of EPDM(gas)& NBR(water)
Type:U ,TH ,TH,H,U,B,RF,F
Surface:Brass color ,plated ,half plated
Code No. | Size | Code No. | Size |
MFL01 01 | L 16X16 | MFL02 01 | L 20X16 |
MFL01 02 | L 20X20 | MFL02 02 | L 25（26）X16 |
MFL01 03 | L 25X25（26） | MFL02 03 | L 25（26）X20 |
MFL01 04 | L 32X32 | MFL02 04 | L 32X16 |
MFL01 05 | L 40X40 | MFL02 05 | L 32X20 |
MFL01 06 | L 50X50 | MFL02 06 | L 32X25（26） |
MFL01 07 | L 63X63 | MFL02 07 | L 40X25（26） |
MFL03 01 | L 16X1/2 F | MFL02 08 | L 40X32 |
MFL03 02 | L 16X3/4 F | MFL02 09 | L 50X40 |
MFL03 03 | L 16X1 F | MFL04 01 | L16X1/2M |
MFL03 04 | L 20X1/2 F | MFL04 02 | L16X3/4M |
MFL03 05 | L 20X3/4 F | MFL04 03 | L16X1M |
MFL03 06 | L 20X1 F | MFL04 04 | L20X1/2M |
MFL03 07 | L 25（26）X1/2 F | MFL04 05 | L20X3/4M |
MFL03 08 | L 25（26）X3/4 F | MFL04 06 | L25（26）X1/2M |
MFL03 09 | L 25（26）X1 F | MFL04 07 | L25（26）X3/4M |
MFL03 10 | L 32X3/4 F | MFL04 08 | L25（26）X1M |
MFL03 11 | L 32X1 F | MFL04 09 | L32X3/4M |
MFL03 12 | L 32X11/4 F | MFL04 10 | L32X1M |
MFL03 13 | L 40X11/2 F | MFL04 11 | L32X11/2M |
MFL03 14 | L 50X11/2 F | MFL04 12 | L32X11/4M |
MFL0415 | L16X1/2M（A） | MFL04 13 | L40X1M |
MFL0416 | L16X3/4M（A） | MFL04 14 | L50X11/2M |
MFL0417 | L20X3/4M（A） | MFL0418 | L16X1/2MX65mm（A） |
MFL03 15 | L16X1/2F（A） | MFL0419 | L16X1/2MX95mm（A） |
MFL03 16 | L20X1/2F（A） | MFL0423 | L20X1/2MX95mm（A） |
MFL03 17 | L16X3/4F（A） | MFL0418 | L16x1/2" MI-150mm(A) |
MFL03 18 | L20X3/4F（A） | MFL0419 | L16x1/2" MI-200mm(A) |
MFL0423 | L20x3/4" MI-150mm(A) | ||
MFL0418 | L20x3/4" MI-200mm(A) |
accept OEM production.
Also supply Screw fitting / PPSU Fitting /QE fitting/Sliding fitting

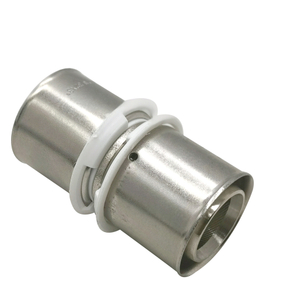

Types of Markt press fitting:Straighter,Elbow ,Tee,Cross,union,Cap.
Wall plated elbow
Elbow:Equal elbow,Reducer elbow,M&Felbow,Wall plated elbow
More Detail please contact with pexpipe@vip.163.com.
